Plate anchors are a proved system that has been used for many years. An advantage of this system is its wide range of connectors, easy installation in prefabricated units, fast and reliable method of mounting to lifting hooks, and virtual lack of possibility of installing lifting hooks with an inappropriate load-bearing capacity. The wide angle of rotation of lifting hooks ensures the correct arrangements of the hooks for inclined lifting.

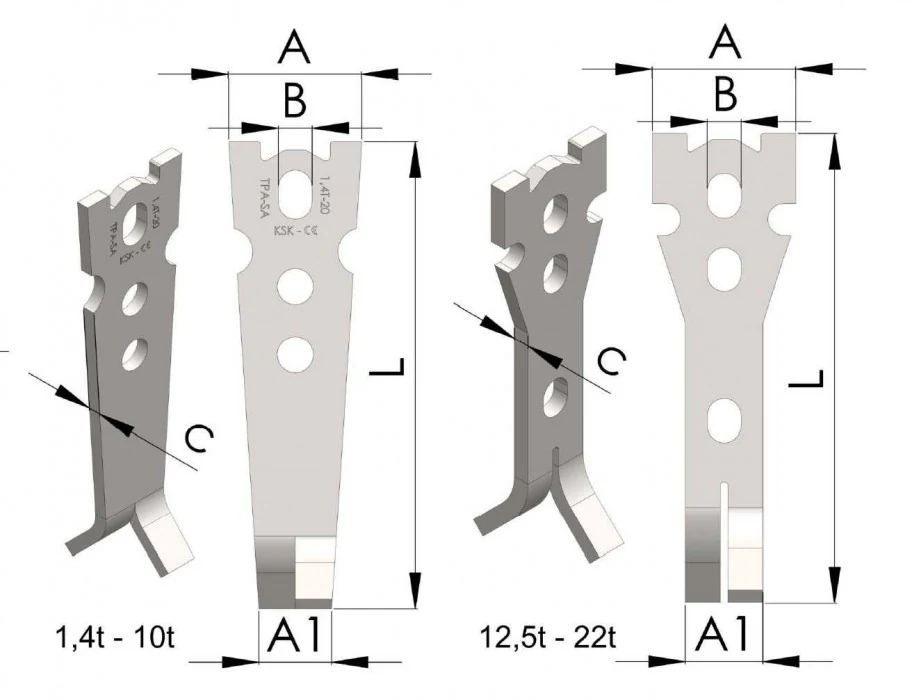

Table of sizes| index No. | load-bearing capacity category [T] | length L mm | width A mm | width A1 mm | thickness c mm | B mm |
| TPA-SA-1,4-20 | 1,4 | 200 | 55 | 30 | 6 | 14 |
| TPA-SA-2,5-23 | 2,5 | 230 | 55 | 30 | 10 | |
| TPA-SA-4,0-27 | 4,0 | 270 | 70 | 40 | 12 | 18 |
| TPA-SA-5,0-29 | 5,0 | 290 | 70 | 40 | 15 | |
| TPA-SA-7,5-32 | 7,5 | 320 | 97 | 57 | 15 | 26 |
| TPA-SA-10,0-39 | 10,0 | 390 | 95 | 55 | 20 | |
| TPA-SA-12,5-50 | 12,5 | 500 | 148 | 80 | 20 | 35 |
| TPA-SA-17,0-50 | 17,0 | 500 | 148 | 80 | 25 | |
| TPA-SA-22,0-50 | 22,0 | 500 | 148 | 80 | 30 |
* We reserve the right to make typographical errors. Technical modifications are possible without prior notice.í.
