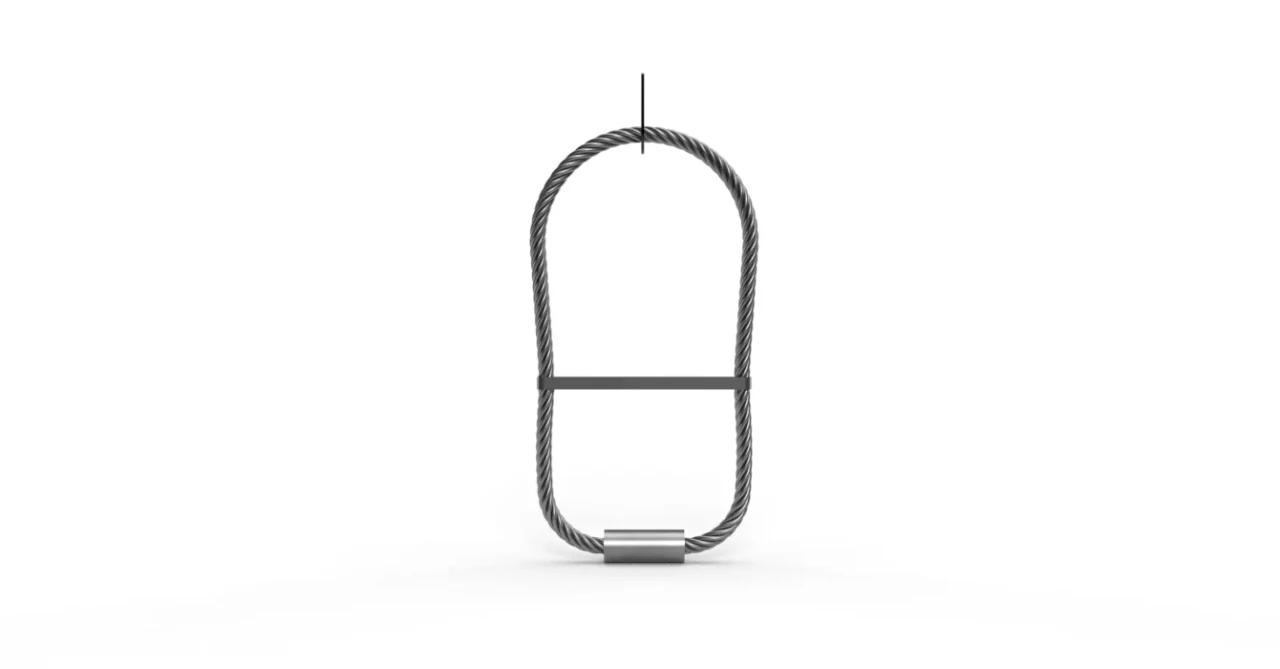

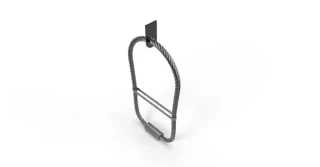

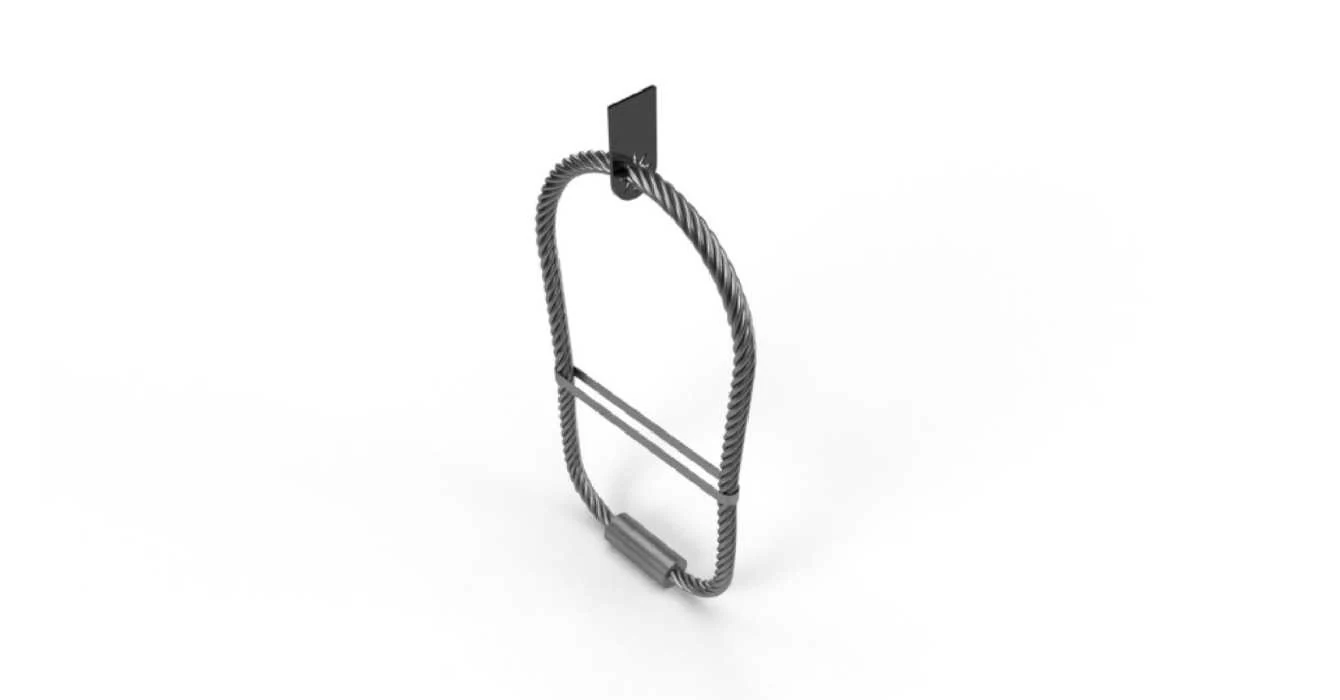

Wire rope loop, galvanised These slings are used to transport prefabricated units the sides of which will not be visible after installation. This means that they can be used for foundations, beams and retaining walls. Note: When stored, the slings must be protected against corrosion, breaks or deformations.

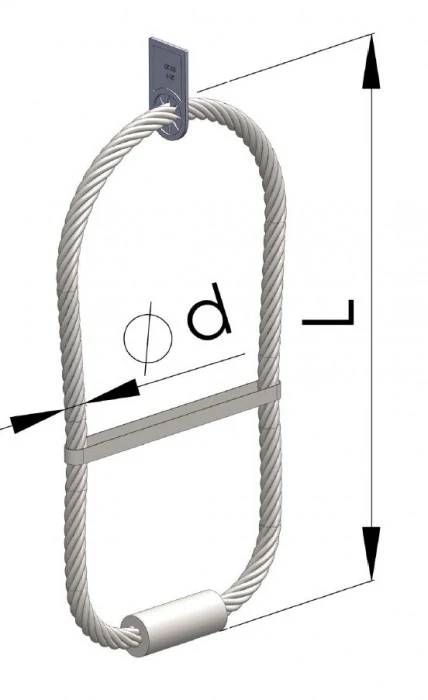

Table of sizes| index No. | load-bearing capacity category [T] | L mm | Ø d of rope mm |
| 4503 | 0,3 | 150 | 4 |
| 4505 | 0,5 | 150 | 5 |
| 4500 | 0,8 | 205 | 6 |
| 4502 | 1,2 | 225 | 7 |
| 4504 | 1,6 | 240 | 8 |
| 4506 | 2,0 | 290 | 9 |
| 4508 | 2,5 | 320 | 10 |
| 4510 | 4,0 | 360 | 12 |
| 4512 | 5,2 | 370 | 14 |
| 4514 | 6,3 | 420 | 16 |
| 4516 | 8,0 | 460 | 18 |
| 4519 | 10,0 | 530 | 20 |
| 4520 | 12,5 | 580 | 22 |
| 4522 | 16,0 | 650 | 26 |
| 4524 | 20,0 | 740 | 28 |
| 4526 | 25,0 | 800 | 32 |
| 4527 | 28,0 | 800 | 32 |
| 4523 | 32,0 | 840 | 32 |
| 4525 | 37,0 | 950 | 36 |
| 4528 | 42,0 | 1000 | 38 |
| Ocelové lanové závěsy - nestandardní | |||
| 4521 | 47,0 | 1100 | 44 |
| 4529 | 52,0 | 1200 | 44 |
| 4531 | 57,0 | 1350 | 44 |
| 4543 | 65,0 | 1430 | 48 |
| 4544 | 75,0 | 1530 | 50 |
| 4545 | 85,0 | 1680 | 52 |
| 4549 | 99,0 | 1800 | 56 |
* We reserve the right to make typographical errors. Technical modifications are possible without prior notice.í.
