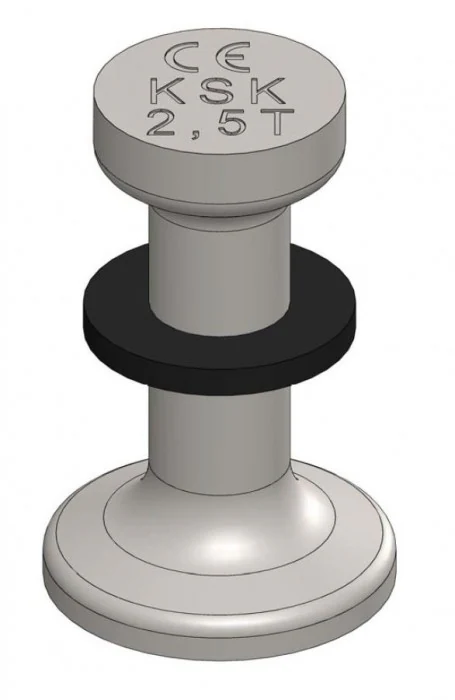

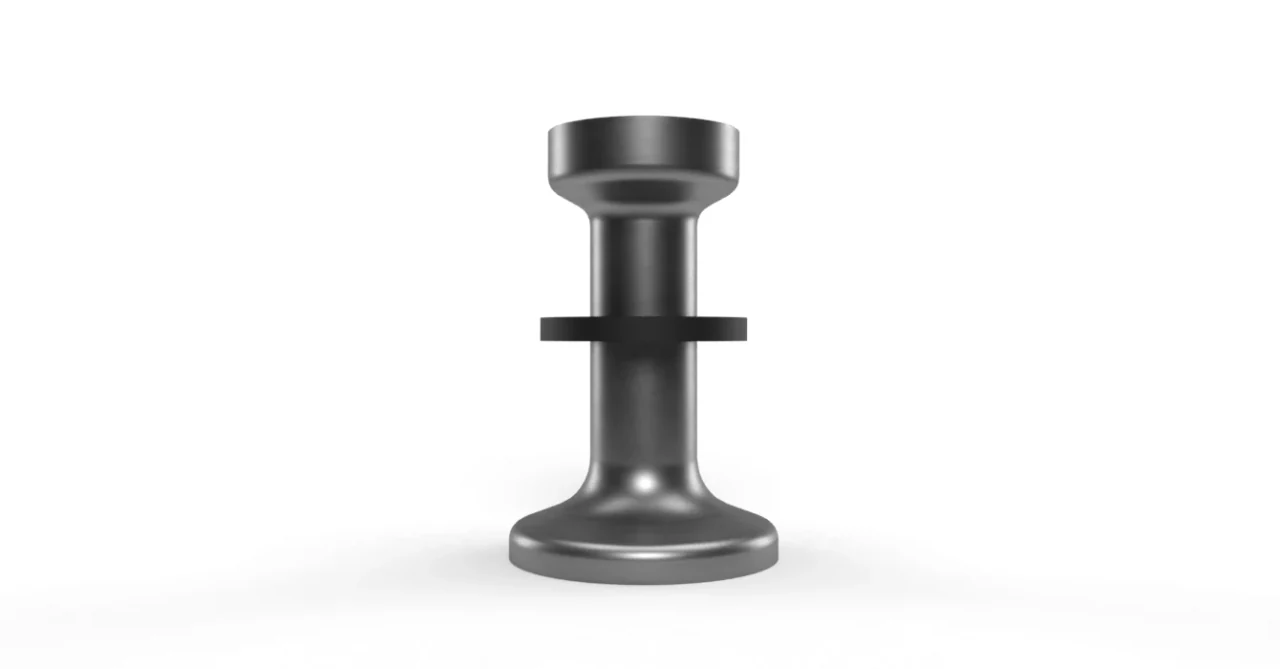

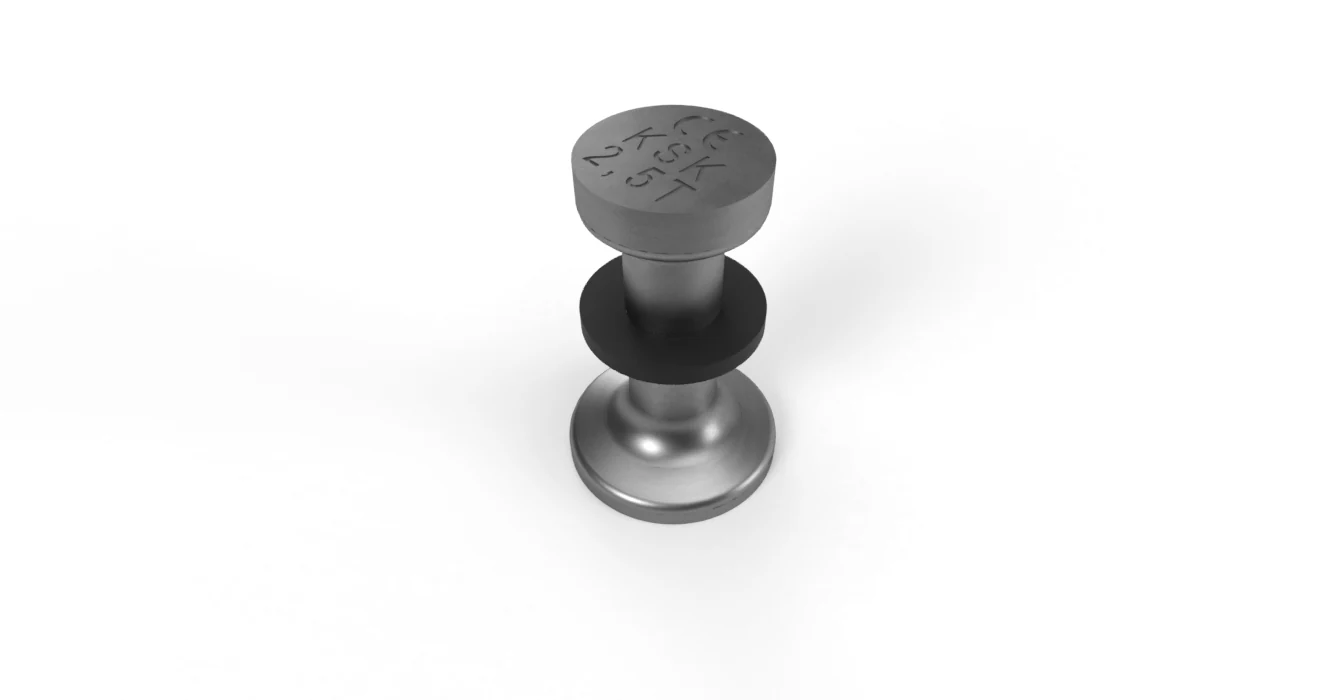

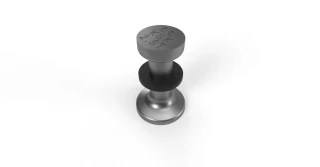

Spherical head anchor
 with a plastic flange

Spherical head anchors with plastic rings are used where recess formers must be left in
the formwork (e.g. the production of floor and wall items that are rotated once taken out of the mould, the production of bottom parts of shafts in a reversed position and of flights of stairs).

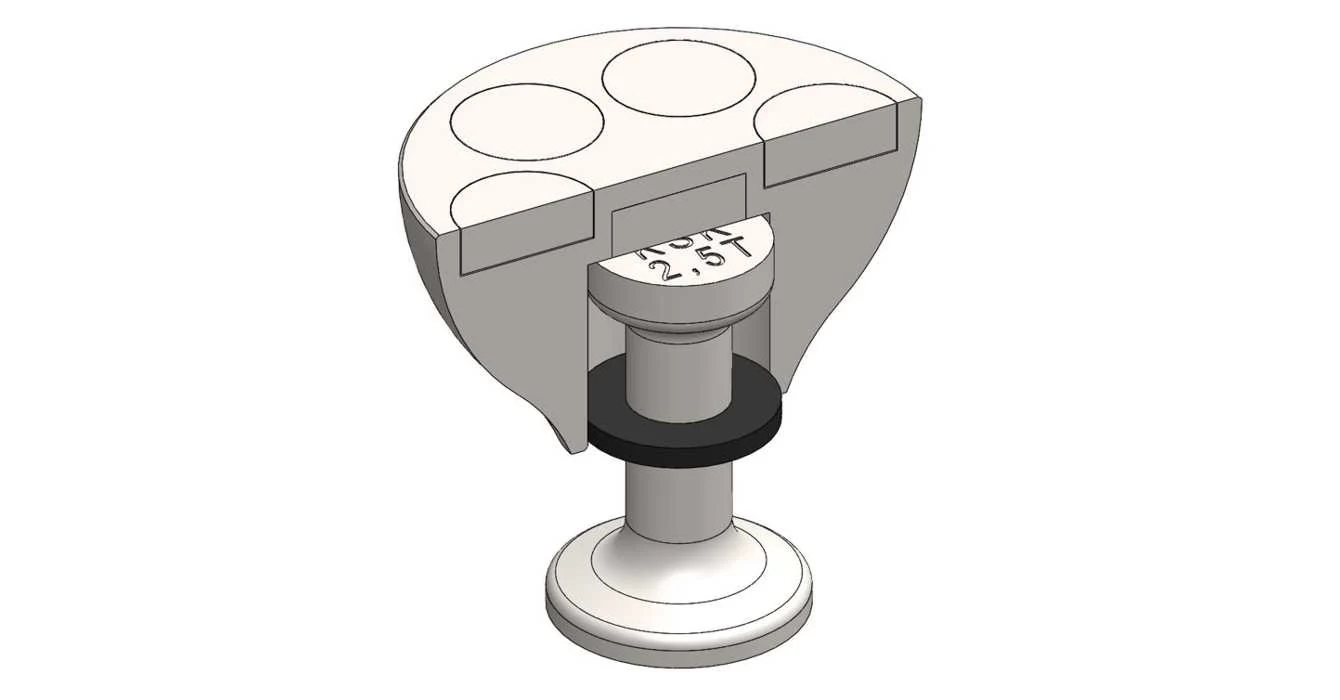

A spherical head anchor with a plastic ring closes the former tightly and ensures
the appropriate position of the anchor. Steel magnetic recess formers are designed especially for these anchors. The sizes of these formers are compliant with all current types
of spherical head anchors and allow
the further use of lifting hooks designed for these anchors.

Table of sizes

numberload-bearing capacity
category tlength
 mm
KR552,555
KR652,565
KR852,585
KR1002,5100
KR1202,5120
KR1402,5140
KR1702,5170

* We reserve the right to make typographical errors. Technical modifications are possible without prior notice.í.
